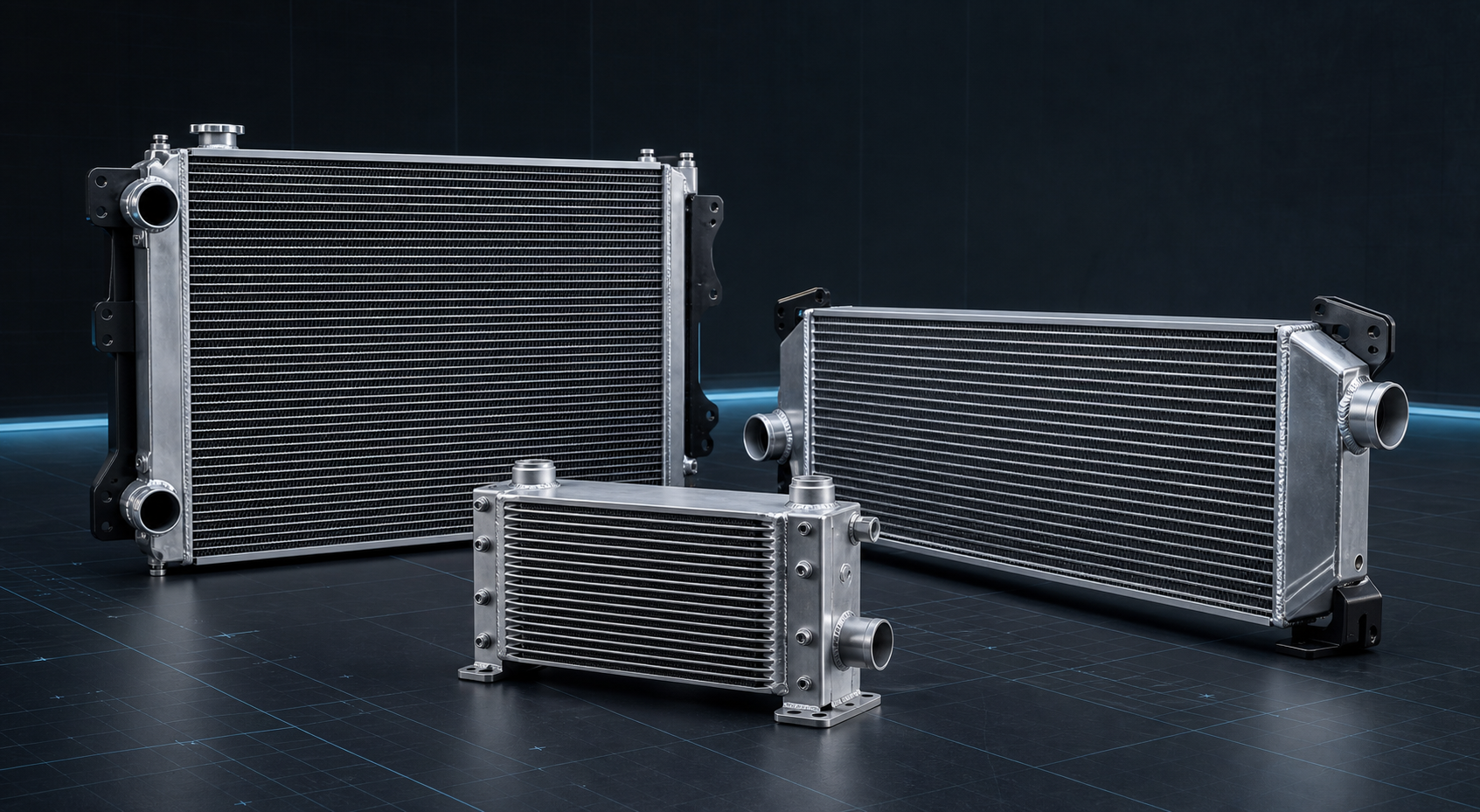

Industrial oil coolers
Compact thermal control for hydraulic, lubrication, transmission and process-oil circuits.
BARPressure-boundary assessment
LOW ΔPLow pressure-drop design
COMPACTCompact structure
LIVE SIMULATIONAIRFLOW / HEAT REJECTION
HX SERIES / OIL COOLING SYSTEM NOMINAL
ENGINEERED SYSTEM
Every module connects product architecture with measurable engineering outcomes.
Pressure drop, bypass and cold starts
02Fans, shrouds and mounting interfaces
03Thermal selection
Match heat-transfer area and airflow to oil type, flow rate, inlet temperature and ambient conditions.
- Heat-load calculation
- Pressure-drop assessment
- Fan matching
Structure selection
Choose a suitable structure around pressure, contamination, cleaning, maintenance and installation space.
- Plate-fin core
- Removable fan shroud
- Bypass and temperature control
Typical applications
Hydraulic power units, compressors, gearboxes, machine tools and mobile equipment.
- Industrial hydraulics
- Lubrication systems
- Transmission systems
